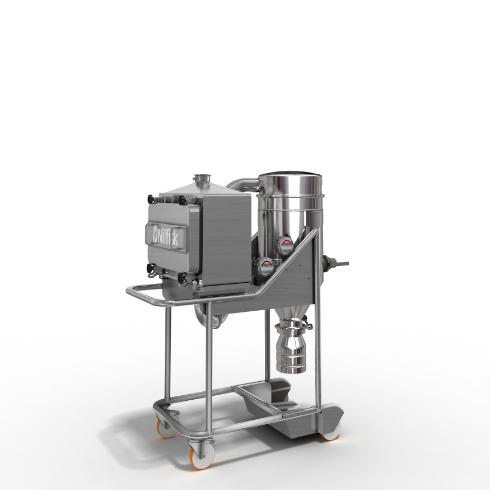

DCU114
The DCU114 is the mobile dust containment unit equipped with star main filter and HEPA14 BagIn BagOut filter, suitable for airflow needs up to 650m3/h.
Fully AISI304 stainless steel with safe disposal of the collected material and safe replacement of the HEPA filter. The star filter can be cleaned and filtering performances resotred thanks to the manual filter shaker, while it needs to be replaced in the equipment maintenance room.
The filter unit is classified OEB5 during operation and OEB4 during maintenance (star filter change not considered).
The HEPA14 filter housing is equipped with DOP ports to perform filter integrity test, while the performances are always under control thanks to the visual indicator on the side of the unit. The hinged door and the stainless steel panel serve as support during filter change, and combined with glove bag make the unit very easy to maintain.
The unit can be equipped with a wide range of optional devices - like sensors, alarms, washing of pipeline.
Opis
DCU114
The DCU114 is the mobile dust containment unit equipped with star main filter and HEPA14 BagIn BagOut filter, suitable for airflow needs up to 650m3/h.
The DCU114 is the mobile dust containment unit equipped with star main filter and HEPA14 BagIn BagOut filter, suitable for airflow needs up to 650m3/h.
Fully AISI304 stainless steel with safe disposal of the collected material and safe replacement of the HEPA filter. The star filter can be cleaned and filtering performances resotred thanks to the manual filter shaker, while it needs to be replaced in the equipment maintenance room.
The filter unit is classified OEB5 during operation and OEB4 during maintenance (star filter change not considered).
The HEPA14 filter housing is equipped with DOP ports to perform filter integrity test, while the performances are always under control thanks to the visual indicator on the side of the unit. The hinged door and the stainless steel panel serve as support during filter change, and combined with glove bag make the unit very easy to maintain.
The unit can be equipped with a wide range of optional devices - like sensors, alarms, washing of pipeline.
- GMP conformity
- OEB5 during operation, OEB4 during maintenance (star filter change not considered)
- Commissioning, FAT-SAT
- Suitable for Atex and combustible dust (St1, St2)
- BagIn BagOut system for the safe replacement of the absolute filter
- Collected material discharge with contamination-free dust bag
- Butterfly valve on machine inlet to avoid contamination back during maintenance operations
- Differential pressure gauges to monitor the vacuum performances
- 30L capacity hopper
- Stainless steel AISI304 unit
- Ease of use
Cechy
- Mobilny
- Przepływ powietrza do 650 m3/h
- Single HEPA H14 bag-in bag-out filter
- Optional Wash-in-place cyclone pre-separation unit
- Stal nierdzewna AISI 304
- Material discharge with contamination-free dust bag
- Star filter pre-separation unit
Dane techniczne
| Pojemność pojemnika (l) | 30 |
| Powierzchnia filtra głównego (cm²) | 19500 |
| Typ filtra głównego | Antistatic M class star filter |
| Max. vacuum (kPa - mbar) | 25 - 250 |
| Max. airflow (m³/h - l/min.) | 550 - 9166 |
| HEPA filter stage(s) | 1 |
| HEPA H14 filter area (cm²) | 100000 |
| HEPA H14 filter replacement system | BagIn BagOut |
| Filtering efficiency (%) | 99,995% |
| OEB level - production phase | OEB5 |
| OEB level - maintenance phase | OEB4 *no filter change included |
| Długość x szerokość x wysokość (mm) | 1521x710x1826 |
Do pobrania
Numer katalogowy Nilfisk: 4072200606
Dane techniczne
| Pojemność zbiornika | 21–40 l |
