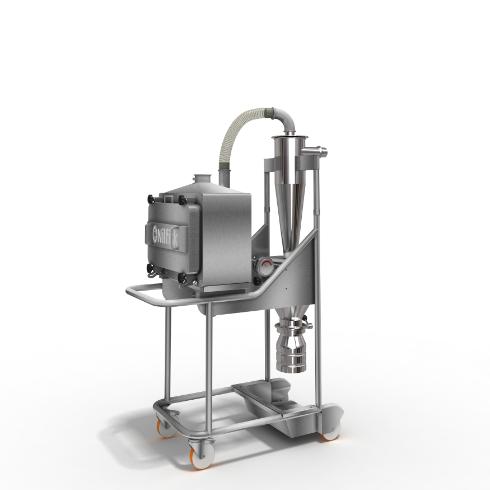

DCU112
The DCU112 is the mobile dust containment unit equipped with cyclone preseparation unit and HEPA14 BagIn BagOut filter, suitable for airflow needs up to 650m3/h.
The AISI316L cyclone, available in WIP version as optional, separates more than 96% of the dust without any filter element, and thanks to that the maintenance costs are reduced.
All maintenance operations are performed in a totally safe way - incl. collected material discharge with contamination-free dust bag - and the filter unit is classified OEB5 during operation and OEB4 during maintenance.
The HEPA14 filter housing is equipped with DOP ports to perform filter integrity test, while the performances are always under control thanks to the visual indicator on the side of the unit. The hinged door and the stainless steel panel serve as support during filter change, and combined with glove bag make the unit very easy to maintain.
The unit can be equipped with a wide range of optional devices - like sensors, alarms, washing of pipeline.
Opis
DCU112
The DCU112 is the mobile dust containment unit equipped with cyclone preseparation unit and HEPA14 BagIn BagOut filter, suitable for airflow needs up to 650m3/h.
The DCU112 is the mobile dust containment unit equipped with cyclone preseparation unit and HEPA14 BagIn BagOut filter, suitable for airflow needs up to 650m3/h.
The AISI316L cyclone, available in WIP version as optional, separates more than 96% of the dust without any filter element, and thanks to that the maintenance costs are reduced.
All maintenance operations are performed in a totally safe way - incl. collected material discharge with contamination-free dust bag - and the filter unit is classified OEB5 during operation and OEB4 during maintenance.
The HEPA14 filter housing is equipped with DOP ports to perform filter integrity test, while the performances are always under control thanks to the visual indicator on the side of the unit. The hinged door and the stainless steel panel serve as support during filter change, and combined with glove bag make the unit very easy to maintain.
The unit can be equipped with a wide range of optional devices - like sensors, alarms, washing of pipeline.
- GMP conformity
- Reduced maintenance costs
- OEB5 during operation, OEB4 during maintenance
- Commissioning, FAT-SAT
- Suitable for Atex and combustible dust (St1, St2)
- BagIn BagOut system for the safe replacement of the absolute filter
- Collected material discharge with contamination-free dust bag
- Differential pressure gauge to monitor the vacuum performances
- 30L capacity hopper
- Stainless steel AISI304 unit
- Wash In Place of cyclone preseparator
- Ease of use
Cechy
- Mobilny
- Przepływ powietrza do 650 m3/h
- Single HEPA H14 bag-in bag-out filter
- Cyclone pre-separation unit
- Optional Wash-in-place cyclone pre-separation unit
- Stal nierdzewna AISI 304
- Material discharge with contamination-free dust bag
- Bezpieczeństwo i serwis
Dane techniczne
| Pojemność pojemnika (l) | 30 |
| Max. vacuum (kPa - mbar) | 25 - 250 |
| Max. airflow (m³/h - l/min.) | 650 - 10833 |
| HEPA filter stage(s) | 1 |
| HEPA H14 filter area (cm²) | 100000 |
| HEPA H14 filter replacement system | BagIn BagOut |
| Filtering efficiency (%) | 99,995% |
| Cyclone pre-separation unit efficiency (%) | >96% *using placebo dust (0.97 kg/dm3) |
| OEB level - production phase | OEB5 |
| OEB level - maintenance phase | OEB4 |
| Długość x szerokość x wysokość (mm) | 1454x710x2232 |
Do pobrania
Numer katalogowy Nilfisk: 4072200604
Dane techniczne
| Pojemność zbiornika | 21–40 l |
